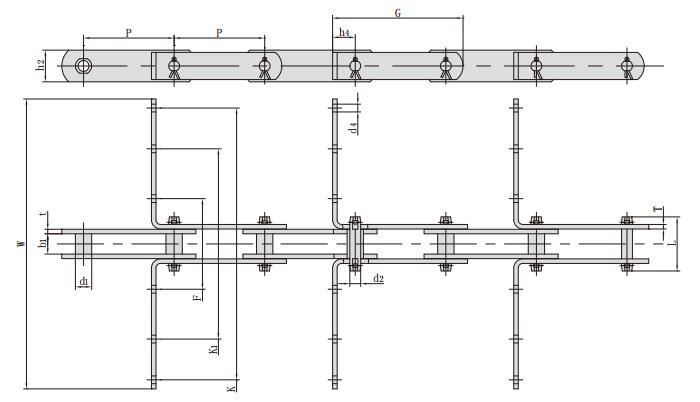

PR100F4_刮板輸送鏈
|
鏈號 |
節距 |
套筒直徑 |
內節內寬 |
銷軸直徑 |
銷軸長度 |
抗拉強度 |
平均抗拉強度 |
每米長重 |
|
P |
d1 |
b1 |
d2 |
L |
Q |
Q0 |
q |
|
mm |
mm |
mm |
mm |
mm |
kN/Ibf |
kN |
kg/m |
|
PR100F4 |
100.0 |
18.00 |
22.00 |
12.00 |
60.00 |
98.00/22030 |
107.80 |
5.70 |
|
鏈條型號 |
G |
F |
W |
K1 |
K |
h4 |
h2 |
d4 |
t/T |
|
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
|
PR100F4 |
144.00 |
100.00 |
320.00 |
210.00 |
300.00 |
25.00 |
35.00 |
10.30 |
5.00 |
